PANELLUME LIGHT LED 6″ SLIM LEGION

Description

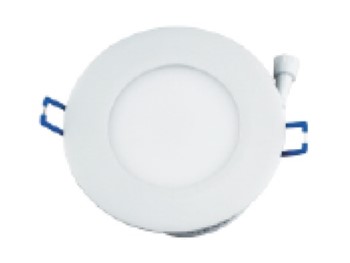

MINI-PANELUME® – Series MRP-6RD
6” Round LED Slim Profile IC Switchable Panel Light

MRP6RDLL1CCTACW120WH-6

SPECIFICATIONS
CONSTRUCTION: Decorative white flange in durable airtight aluminum body, under ½”
thick. Steel driver junction box with snap cover rated for Type IC applications. Quick
connect terminals for fast wiring.
OPTICS: Frosted etched white polycarbonate diffuser with 120º spread.
ELECTRICAL: Long life LED, rated for 50,000 hours with high efficiency triac dimming
driver, 120V, 50/60Hz operation. Dimming can be accomplished with a LED compatible
wall dimmer (Lutron C-L or equal). Total consumption 12 watts.
LED MODULE: LED array. 12 watts/700 lumens. 90CRI. Field selectable color
temperature of 2700°K, 3000°K, 3500°K, 4000°K and 5000°K.
MOUNTING: Easy recess installation with the integral heavy duty springs. Includes 15”
cable from driver to fixture. Pre-mounting plate and longer cord length available, see
OPTIONS.
FINISH: White.
CERTIFICATION: The MINI-PANELUME® Series MRP-6RD luminaire is ETL listed for
damp location. ADA compliant when mounted in the wall.
WARRANTY: Five (5) year warranty
