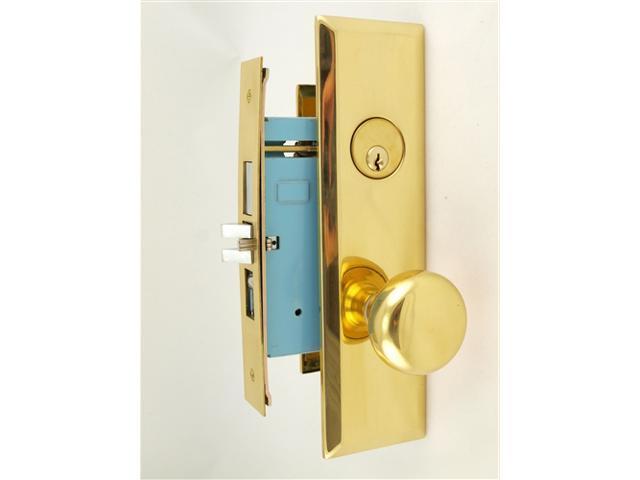

MARKS MORT.LOCK 7NY10A/3X RH

SKU: 110149 Categories: LOCKS, MORTISE LOCKS, MARKS
or
Buy Now

Description

  • Thru-bolted screwless knob/lever plate assemblies
  • Independent spring loaded captivated spindles
  • Reversible mortise lock 2-3/4″ backset
  • Lever support springs
  • Lock front:1-1/4″ x 8″
  • Dimensions: Ext: 10″ H x 2-3/4″ W, *Int: 7″ H x 2-1/4″ W
  • Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
  • Bolt throw: Cast alloy full 1″ throw
  • Latch throw: 5/8″ (anti-friction)
  • Case: High pressure cast Zamac,baked enamel finish
  • Front: 1-1/4″ x 8″, Flat or 3° bevel
  • Hubs: 9/32″ on square steel with security separator

Marks USA New Yorker Grade 1 Mortise Lockset 7NY10A

Additional information

Weight .0100 lbs
Dimensions .00000 × .00000 × .00000 in
