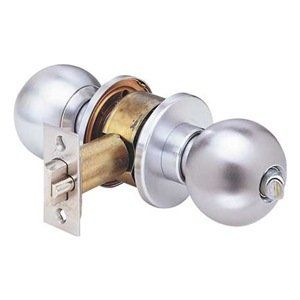

ARROW BATH LOCKSET US3 X US26D 2-3/8″ BACKSET BALL KNOB

Be the first to review this product

SKU: 101005 Categories: LOCKS, TUBULAR LOCKS, PRIVACY

Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Certification

  • ANSI/BHMA A156.2, Series 4000, Grade 2
  • Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
  • Federal Specifications FF-H-106C, Series 160
Log in to see prices
or
Request A Quote
or
Buy Now

Description

#Mk02BD-US3X26-101 BALL KNOB

GRADE 2

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8″ (53.97 mm) bore through door.

Backset: 2-3/8″ (60.32 mm) standard. 2-3/4″ (69.85 mm), 3-3/4″ (95.25 mm) and 5″ (127 mm) available.

Door Thickness: 1-3/8″ (34.92 mm) to 1-3/4″ (44.45 mm)

Latch: Brass with 1/2″ (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8″ (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8″ (60.32 mm) backset measures 2-1/4″ (57.15 mm) x 1″ (25.40 mm), with a flat front, for 2-3/4″ (69.85 mm) standard faceplate measures 2-1/4″ (57.15 mm) x 1-1/8″ (28.57 mm), with a beveled front 1/8″ (3.17 mm) in 2″ (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4″ (69.85 mm) x 1-1/8″ (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8″ (123.82 mm) x 1-1/4″ (31.75 mm). All strikes have a 1-1/4″ (31.75 mm) lip to center dimension.

Handing: Reversible.

Additional information

Weight .0100 lbs
Dimensions .00000 × .00000 × .00000 in
